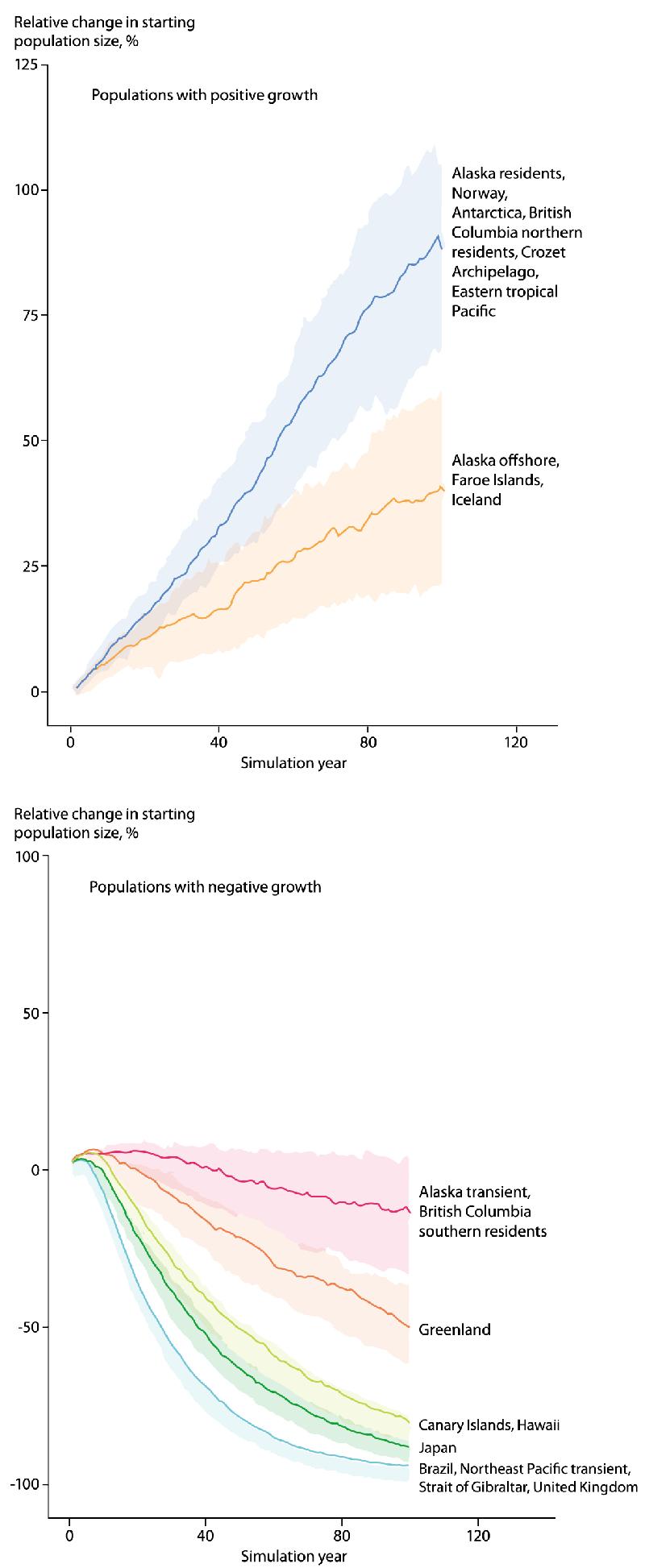

Figure 4.2 Combined reproductive and immune effects of PCBs on population size of killer whales simulated for a 100-year period. Bold line and shading represent the median and interquartile range represented as a percentage of starting population size. Panels are divided by populations with positive growth and negative growth. Modified from Desforges et al. (2018).
Name
Kind
Size
Language
Status
Modified
Options
Meta Data
Publication:
AMAP Assessment 2018: Biological Effects of Contaminants on Arctic Wildlife and Fish
Page number:
31
Type:
Graph
Caption:
Figure 4.2 Combined reproductive and immune effects of PCBs on population size of killer whales simulated for a 100-year period. Bold line and shading represent the median and interquartile range represented as a percentage of starting population size. Panels are divided by populations with positive growth and negative growth. Modified from Desforges et al. (2018).
Copyright:
Arctic Monitoring and Assessment Programme (AMAP)
Cartographer / Designer:
Burnthebook.co.uk
