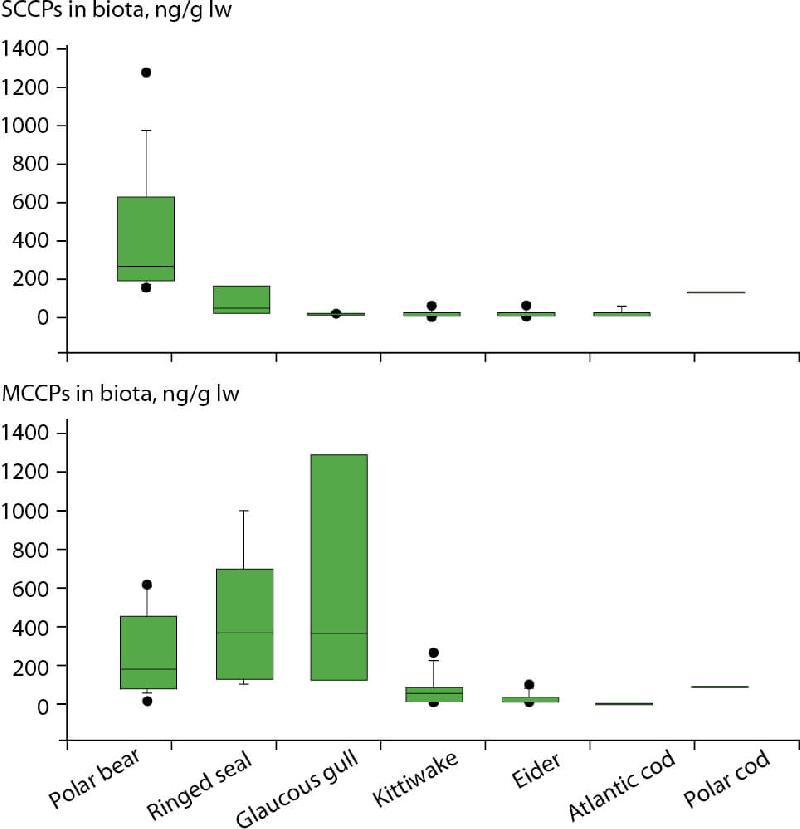

Figure 2.69 Box and whisker plots comparing SCCP and MCCP concentrations in biota from Svalbard, Norway in 2012. Tissues sampled include plasma (polar bear, ringed seal, glaucous gull), eggs (common eider, kittiwake), liver (Atlantic cod) and pooled whole body homogenate (polar cod). The box indicates the 25th and 75th percentiles and the horizontal line marks the median. Lines without statistics are below three valid data points (> detection limits) (NILU, 2013).
Name
Kind
Size
Language
Status
Modified
Options
Meta Data
Publication:
AMAP Assessment 2016: Chemicals of Emerging Arctic Concern
Page number:
127
Type:
Graph
Caption:
Figure 2.69 Box and whisker plots comparing SCCP and MCCP concentrations in biota from Svalbard, Norway in 2012. Tissues sampled include plasma (polar bear, ringed seal, glaucous gull), eggs (common eider, kittiwake), liver (Atlantic cod) and pooled whole body homogenate (polar cod). The box indicates the 25th and 75th percentiles and the horizontal line marks the median. Lines without statistics are below three valid data points (> detection limits) (NILU, 2013).
Location:
Svalbard, Barents
Copyright:
Arctic Monitoring and Assessment Programme (AMAP)
Cartographer / Designer:
Burnthebook.co.uk
