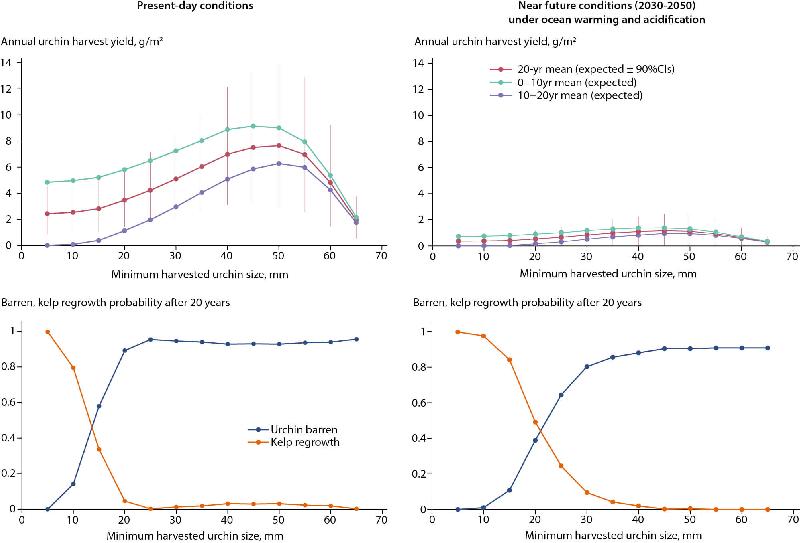

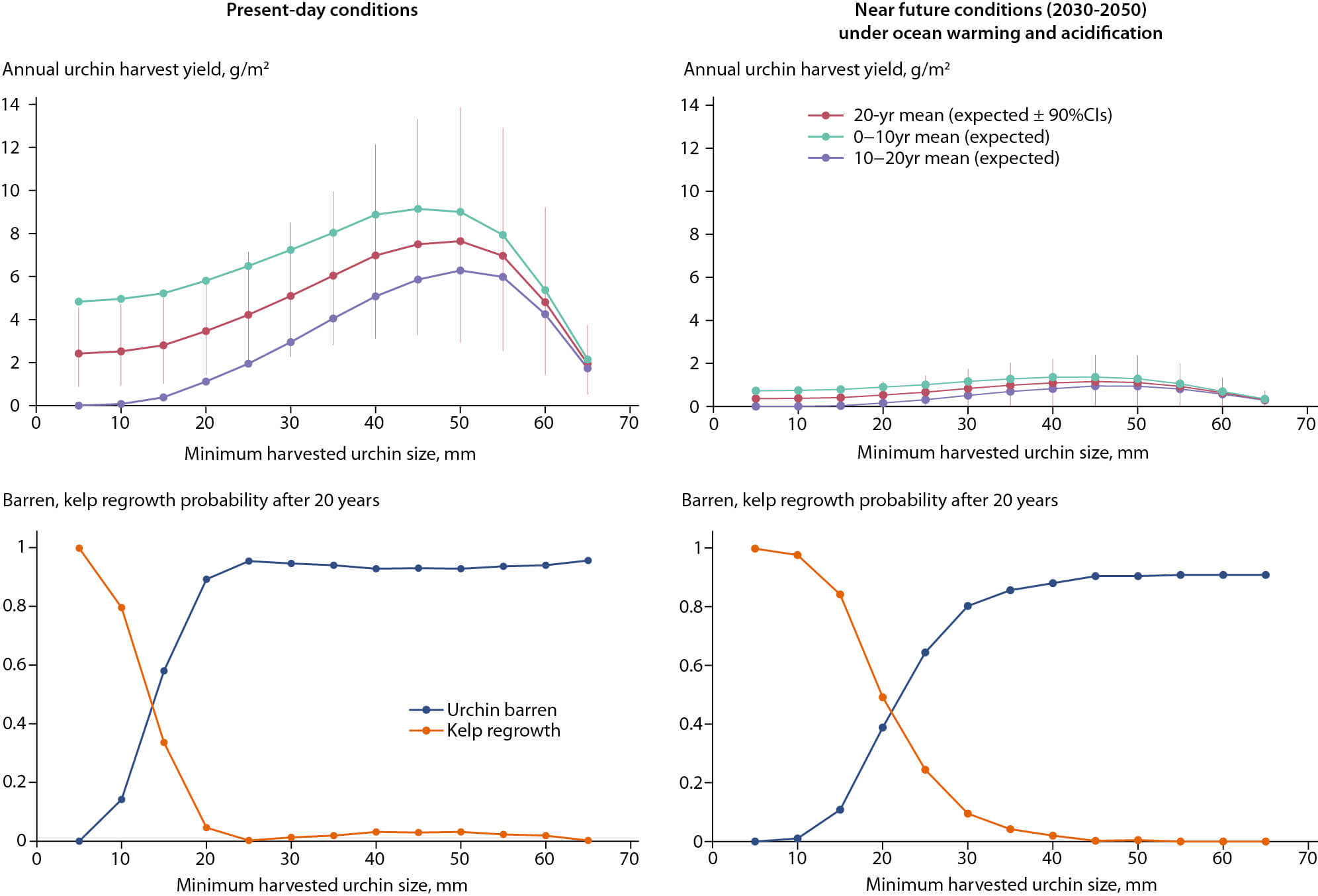

Figure A2.4 Simulated annual urchin harvest yield (gonad biomass per m2) and urchin barren/kelp regrowth probability as a function of the minimum harvested test diameter. Left-hand columns show results for present-day conditions and right-hand columns show the impacts of near-term ocean warming and acidification (2030–2050, SRES A1B, corresponding to +0.8°C, +100 μatm pCO2 ~ -0.1 pH).
Name
Kind
Size
Language
Status
Modified
Options
Meta Data
Publication:
AMAP Assessment 2018: Arctic Ocean Acidification
Page number:
82
Type:
Graph
Caption:
Figure A2.4 Simulated annual urchin harvest yield (gonad biomass per m2) and urchin barren/kelp regrowth probability as a function of the minimum harvested test diameter. Left-hand columns show results for present-day conditions and right-hand columns show the impacts of near-term ocean warming and acidification (2030–2050, SRES A1B, corresponding to +0.8°C, +100 μatm pCO2 ~ -0.1 pH).
Copyright:
Arctic Monitoring and Assessment Programme (AMAP)
Cartographer / Designer:
Burnthebook.co.uk
