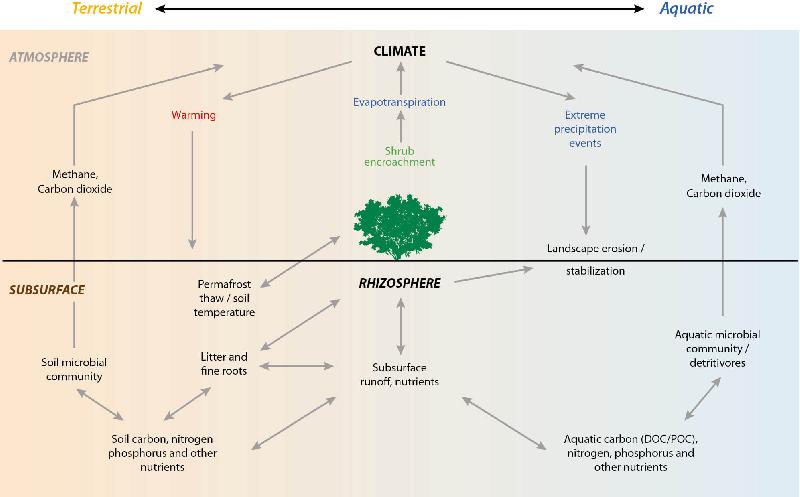

Figure 7.12 Linkages and possible effects of vegetation change on Arctic terrestrial and aquatic biogeochemical and ecological processes (Wrona et al., 2016 – adapted from Myers-Smith et al., 2011).
