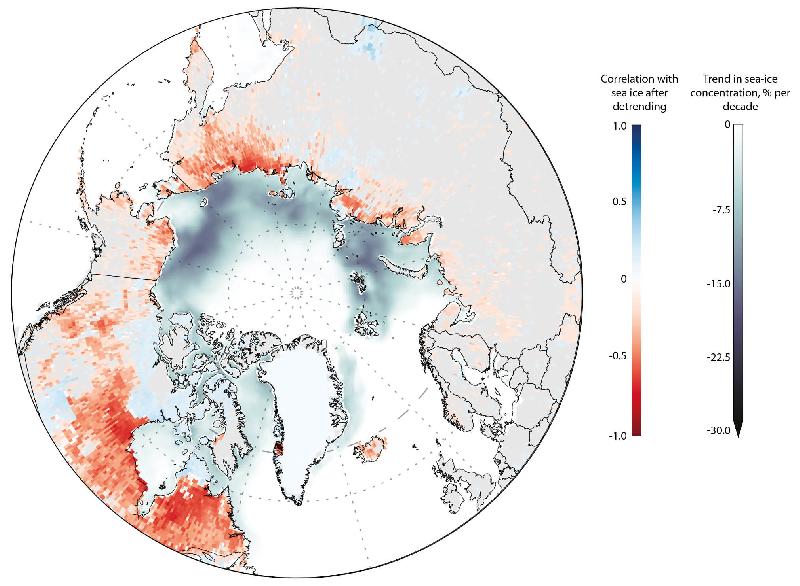

Figure 8.8 Correlation between terrestrial methane (CH4) emissions and sea ice for May–October over the period 1981–2010. The color of each grid cell indicates the strength of the correlation between modeled CH4 emissions and sea-ice concentration within a radius of 2000 km from the grid cell. The linear trend in sea-ice concentration is shown to indicate areas of high retreat (Parmentier et al., 2015).
